Door detectors



EN 81-70 EN 81-20

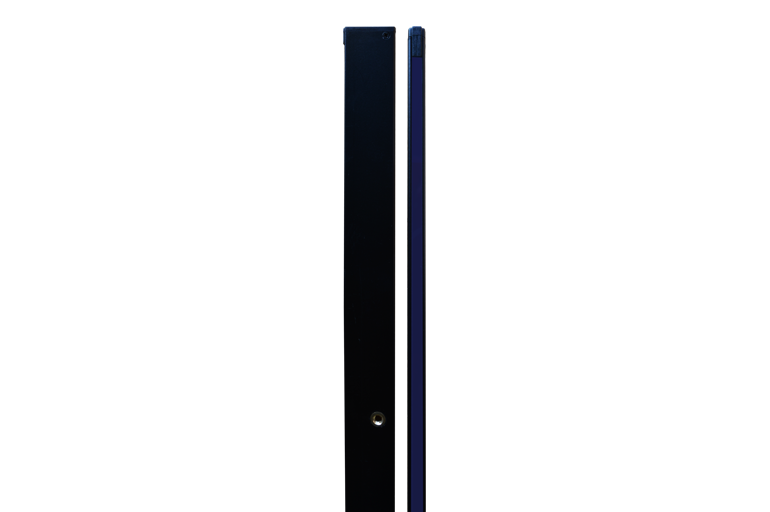

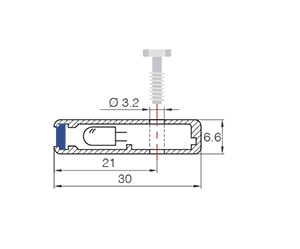

The S1X profile is just 6.6mm thin. It is perfect for dynamic installations where there is not much space for door detectors.

Includes car top box, cables, mounting accessories and heavy-duty packaging.


  • 154 crossed beams from 32 diodes and 194 crossed beams from 36 diodes
  • Standard height 2000mm
  • Detecting range 4000mm
  • Immune to sunlight
  • IP54 rating
SIX SERIESDiodesFaisceauxVoltageHauteur totaleHauteur de détectionBoitier d'alim.EN 81-20EN 81-70Fiches produitGuide d'installation
03.G5.SIX.174.FED.22036174220Vac2000mm20 - 1665mm
03.G5.SIX.174.FED.243617424V2000mm20 - 1665mm
03.G5.SIX.154.AC22032154220Vac2000mm20 - 1841mm
03.G5.SIX.154.DC243215424VDC2000mm20 - 1841mm
