Door detectors



EN 81-70 EN 81-20

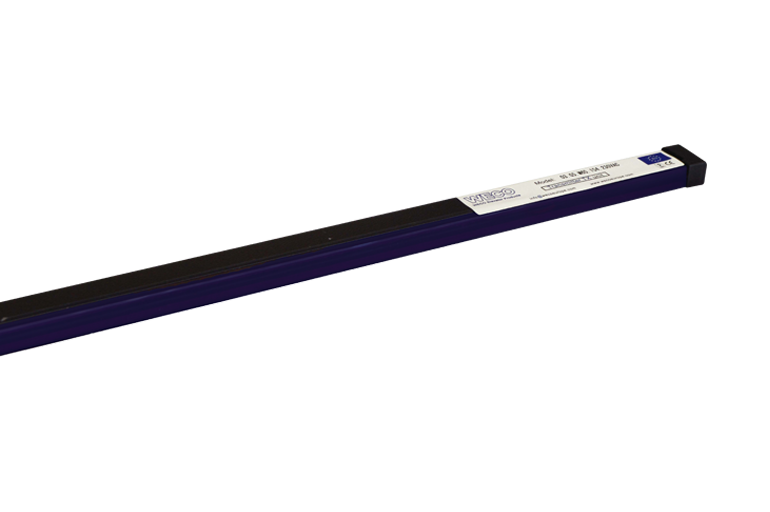

The M65 door detector is waterproof to IP65. It includes a fixing fin on the back, which allows the edge to be fixed without compromising the integrity of the main electronic compartment.
It can be installed in both static and dynamic locations.

Includes car top box (not IP rated), cables, mounting accessories and heavy-duty packaging


  • 194 crossed beams from 36 diodes
  • Standard height 2000mm
  • Detecting range 4000mm
  • Immune to sunlight
  • IP65 rating
M65 SERIES DiodesFaisceauxHauteur totalHauteur de détectionBoitier d'Alim.Auto-MaskingEN 81-20EN 81-70Fiche produitGuide d'installation
03.G5.M65.194.FED2361942000mm20 - 1841mm
03.G5.M65.194.FED2.24361942000mm20 - 1841mm
03.G5.M65.154.AC22321542000mm20 - 1841mm
03.G5.M65.154.DC24321542000mm20 - 1841mm
